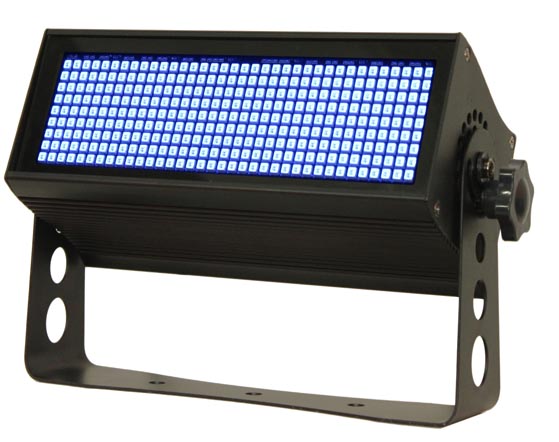

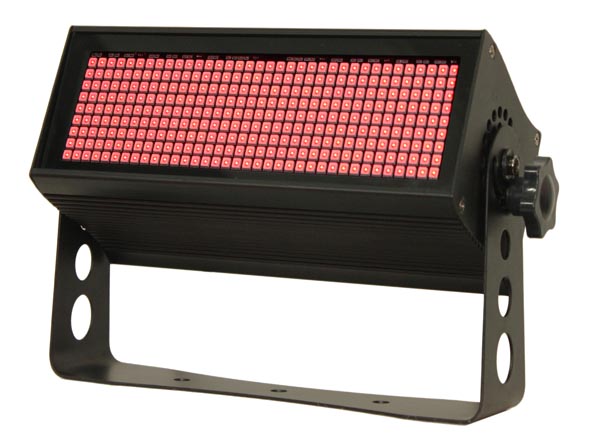

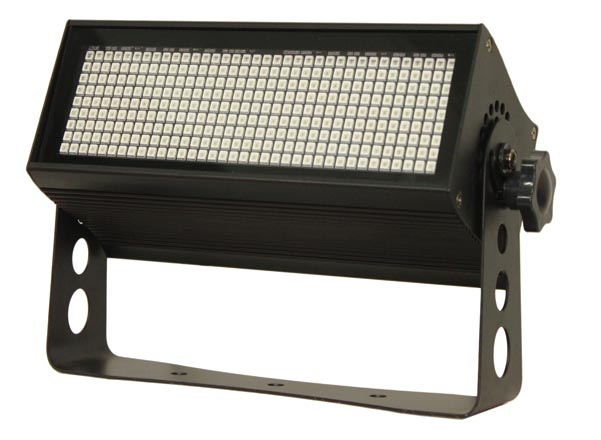

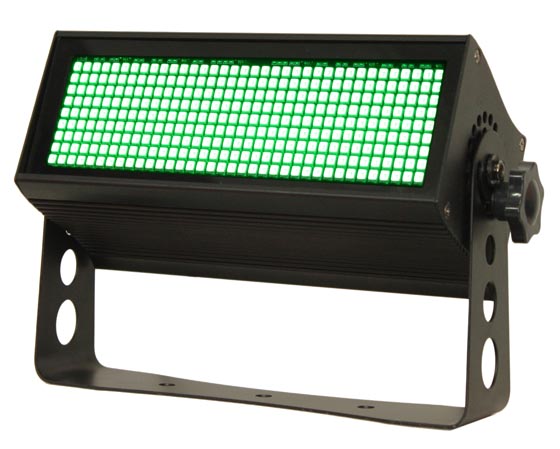

Mini Storm 400 RGB

TECHNICAL INFORMATION

Optics

            Light source: 324 x RGB LEDs

            Luminous: 15,000 lm

            LEDs expected lifetime: 50,000 hours*

            Lens options: 120 degrees fixed

Features

            Pan/Tilt: 0° / 120°

            LED Panel: 3 individual controllable segments

Electrical

            AC Power: 100 – 240V 50/60 Hz

            Maximum power consumption: 350 W

            Typical current consumption: 1.6A at 220V

Programming and Control

            Protocol: USITT DMX512

            Setting and addressing: DMX Mode / Master-slave mode / Pixel mode (50% of the max strobe brightness,

optional use as wash)

            DMX channels: 1, 3, 4, 5, 6, 7, 16

Physical

            Dimensions (L x H x W): 360 x 180 x 110 mm (14.17 x 7.09 x 4.33 in)

            Weight: 2.55 Kg (6.17 lbs.)

            Material: Die-casting Aluminum

            Lens: Tempered glass front

Installation

            Orientation: Any

            Rigging possibilities: floor stand or hanging

            Safety features: Bottom mount for Safety wire

Thermal

            Temperature range, Operating: -10° to +40°C (14° - 104°F)

            Humidity (max.): 90%

            Safety features: active, fan cooling

Connections

            DMX data in/out: XLR 5-pin/ 3-pin in and out

            Power connector: In and out

            Power cable 1.5m

Conforms to

            Certifications CE and RoHS

Included Items

            A Safety Cable & Eyebolt

            A power Cord &DMX signal cable

            User Manual

Features and Accessories

            Intense built-in strobe programs + random strobe

            3/9-segment pixel modes can safely be used as wash (max 40% brightness)

            Built-in over heat protection temperature sensor to extend the lamp life

            Variable electronic strobe & 16-bit dimmer

            User adjustable flash rate of 0-30 flashes per second

            Flash duration can be set from 0-650ms in DMX mode

            7000Hz LED scan rate

            4-button easy to use LCD control panel menu

            Aluminum mounting bracket with locking knobs + base plate

            3-pin & 5-pin DMX Input/Output

            PowerCon™ compatible AC power In/Out connectors

Effects

            Both Strobe and wash mode are available

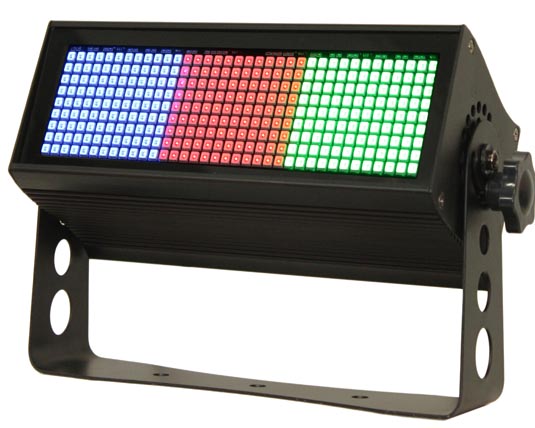

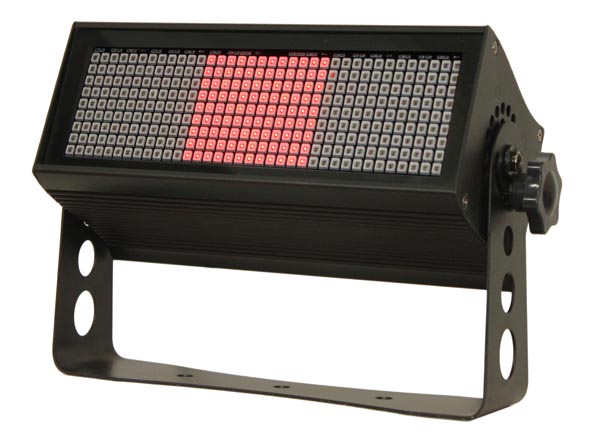

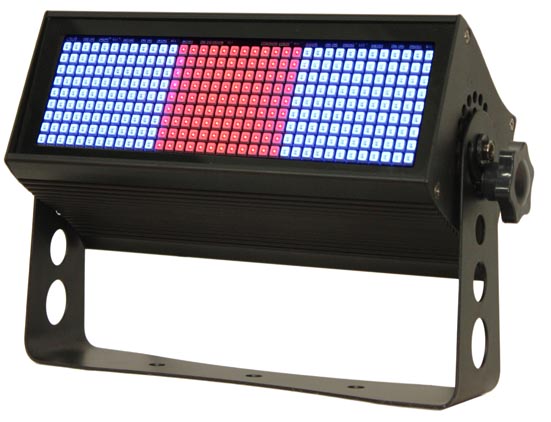

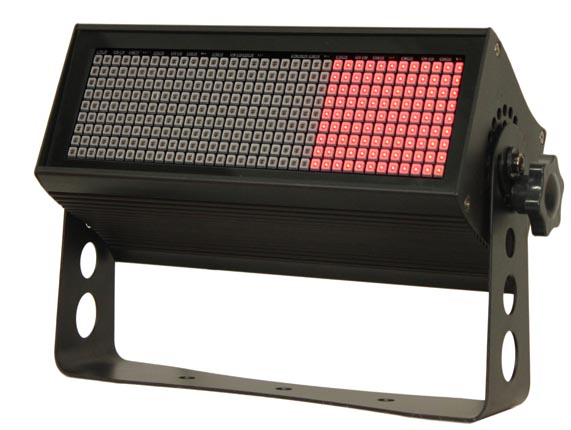

            3 segments LED, can be controlled separately, with 16bit dimmer

            Flash duration from 0 to 650ms in DMX mode (except 1 channel mode)

            0-30 flashes per second

            Ramp up effect: light gradually increases in intensity, then blacks out

            Ramp down effect: light flashes to full intensity, then gradually fades

            Ramp up-down effect: light gradually increases and decreases

            Radom flash effect: light flashes randomly with variable rate and intensity.

            Multiple units flash independently from each other

            Blinder effect: the light remains on (lamp power is electronically regulated to prevent the lamp from overheating)

            Lightning effect: the flashes simulate lightning, duration is not adjustable

            Spikes: the lamp remains dimly illuminated between flashes. Set flash intensity, duration and rate as normal

*(Figure provided by manufacture and obtained under manufacture`s test conditions)
