4 in 1 RGBW LED Bar (available 2 beam angles)

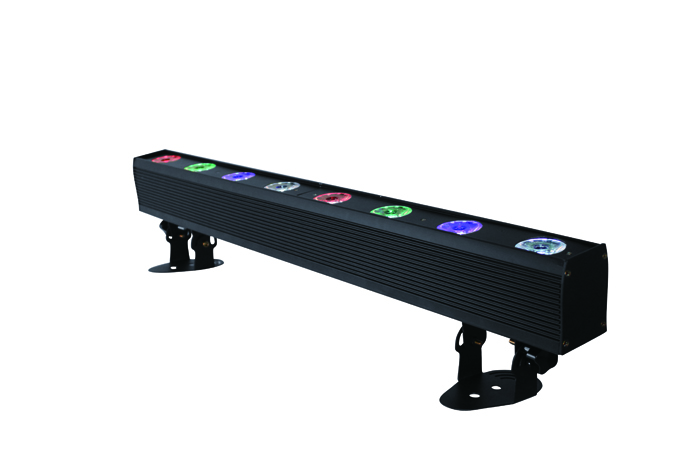

INTELLA brings to you an outstanding LED Bar Pixel Lighting product - STIK 8 - innovates with an easy multi fixture hanging system. STIK 8 comes to be versatile and suitable to complement your portfolio of fixtures. The chassis was thoroughly designed to allow STIK series (STIK 8, STIK 8 RGB & STIK 12) to be mutual connected from each of its 2 sides, enabling then bigger panels designs and unbelievable performances and effects.
STIK 8 with the proper power consumption for professional stages, 100W, creates incredible effects and deliver the best from a Bar Pixel Lighting.
The most suitable bright output of 8 pieces 4 in 1 Osram LEDs turns out a great luminous of 4,000 lm. The STIK 8 is a lightweight - 4.55 Kg - robust, compact, versatile and ultra-high performance LED wash with an exceptionally low current consumption of only 1.1 Amps at 220V.
Video: https://www.youtube.com/watch?v=EIVEYBrUtYI |
|
|
请稍候...
-
STIK 8
TECHNICAL INFORMATION
Optics
-
Light source: 8 pcs x 4 in 1 Osram LEDs
-
Light output: 4,000 lm
-
LEDs expected lifetime: 50,000 hours*
-
Beam Angle: 7° or 15° x 45° (available 2 LED beam angles)
Features
-
LED Panel: 8 individual controllable pixels with 16 Dimmer
-
LED scan rate: 500 Hz
Electrical
-
AC Power: 100 – 240V 50/60 Hz
-
Maximum power consumption: 100 W
-
Typical current consumption: 1.1A at 220V
Programming and Control
-
Protocol: USITT DMX512 A
-
Setting and addressing: DMX Mode/ Master-slave mode
-
DMX channels: 1, 3, 4, 5, 10, 15, 24, 32
Physical
-
Dimensions (L x H x W): 840 x 173 x 74 mm (33.08 x 6.81 x 2.90 in)
-
Weight: 4.55 Kg (10.03 lbs.)
-
Weight: 6.9 Kg (15.21 lbs.), single housing
-
Material: Aluminum
-
Lens: Acrylic
Installation
-
Orientation: Any
-
Rigging possibilities: floor stand (included) or hanging
Thermal
-
Temperature range, Operating: -10° to +40°C (14° - 104°F)
-
Humidity (max.): 90%
-
Safety features: Passive
Connections
-
DMX data in/out (indoor version): XLR 5-pin & 3-pin, for DMX in and out
-
Power cable 1.5m
Conforms to
-
Certifications CE and RoHS2
-
Waterproof grade: IP40 (indoor model)
Included Items
-
1 x Mounting Bracket & 2 x Locking Knobs
-
A sweet Safety Cable & eyebolt
-
A power Cord
-
User Manual
Features
-
Built-in over heat protection temperature sensor to extend the lamp life
-
4-button easy to use LCD control panel menu
-
Aluminum mounting bracket with locking knobs
-
3-pin & 5-pin DMX Input/Output
-
Compatible AC power In/Out connectors
Effects
-
8 pixels 4 in 1 LED, can be controlled separately, with 16bit dimmer
*(Figure provided by manufacture and obtained under manufacture`s test conditions)
|
|
|
|
|
|
|
