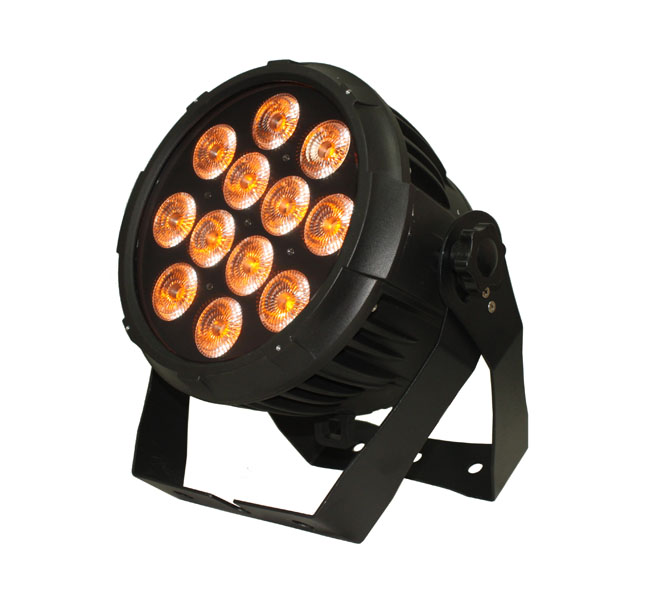

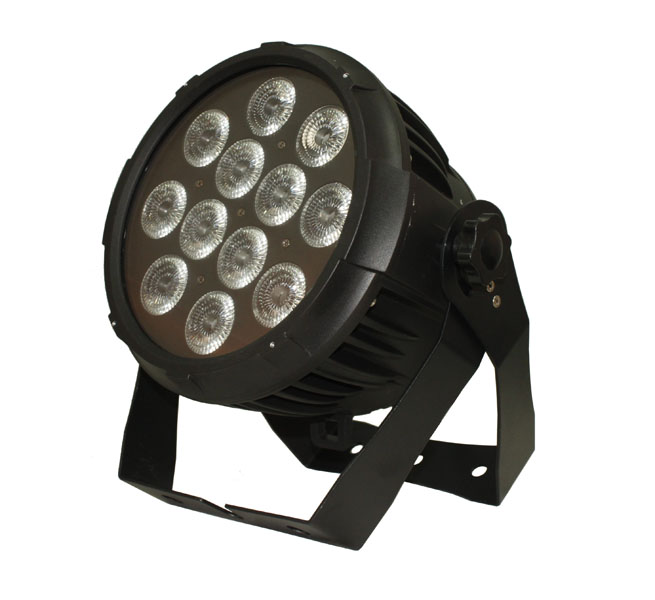

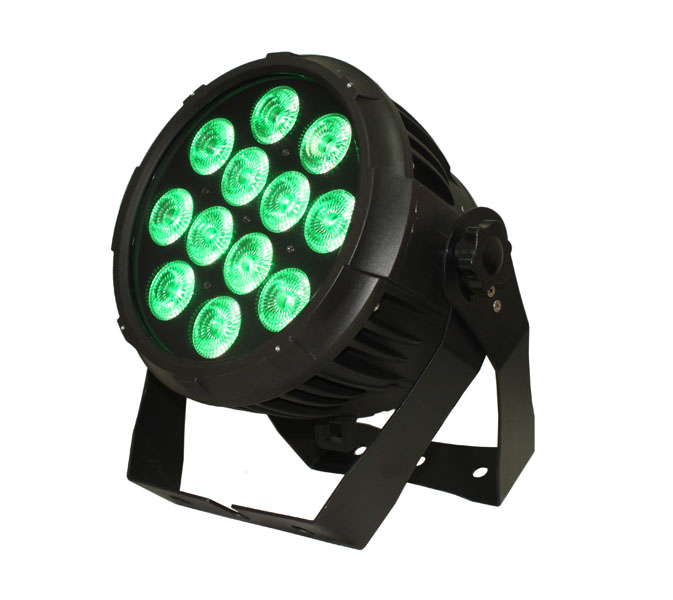

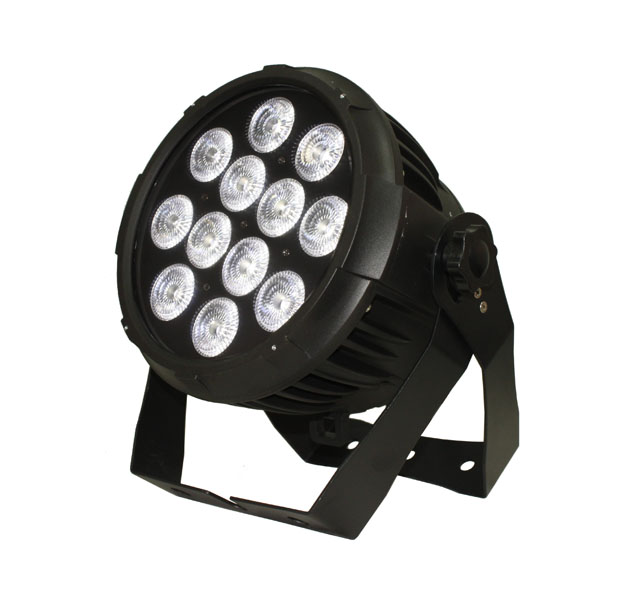

LED Outdoor Par
Intella System innovates with the new LED Par PF1212, for indoor and outdoor use. Comes with high efficiency component optics, 12 pcs RGBWA/ RGBWA+UV and very bright output, 5,000 lm. PF1212 LED life expectancy is over 50,000 hours.
PF1212 comes with DMX master/slave-function and operating mode. Brings the 2 options of DMX channels: for RGBWA 1/3/4/5/11/ 15/ 16 and for RGBWA+UV: 1/3/4/6/12/16/17.
A very suitable beam angle of 35°, diecasting heatsink with fans and 16 Bit dimmer are some features that make PF1212 such a great fixture.
The PF1212 is a lightweight, robust, compact and ultra-high performance LED par, with an exceptionally power consumption of 180W.
Video: https://www.youtube.com/watch?v=iUWck0nSBCk |
|
|
请稍候...
-
PF1212
TECHNICAL INFORMATION
Optics
-
Light source: 12 pcs RGBWA/ RGBWA+UV
-
LEDs expected lifetime: > 50,000 hours
-
Output: 5,000 lm
-
Beam angle: 35° selectable
Optical and effects
-
IP65
-
Dimmer:16 Bit dimmer
-
Waterproof rating: IP22 and IP65
-
LED Scan Rate: 2,000Hz
Electrical
-
Supply input: AC100-240V 50/60Hz
-
Power consumption: 180W
Mechanical
-
Height: 250 mm (9.84”)
-
Width: 140 mm (5.51”)
-
Depth: 182 mm (7.17”)
Thermal
-
Cooling: Diecasting heatsink with fans
-
Over Heat Protect With temperature sensor to extend the light source life
Control and >Programming
-
DMX mode:
-
RGBWA: 1/3/4/5/11/ 15/ 16 DMX channels
-
RGBWA+UV: 1/3/4/6/12/16/17 DMX channels
-
Operating Mode: DMX Mode/Master-Slave mode
|
|
|
|
|
|
|
