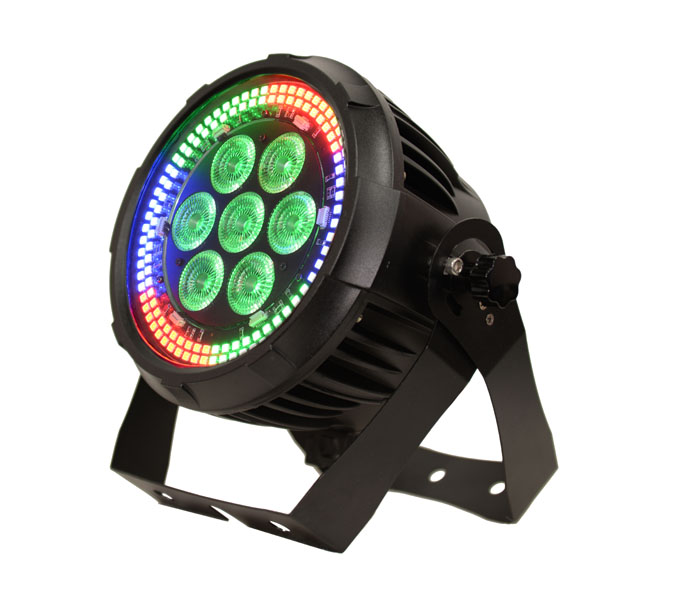

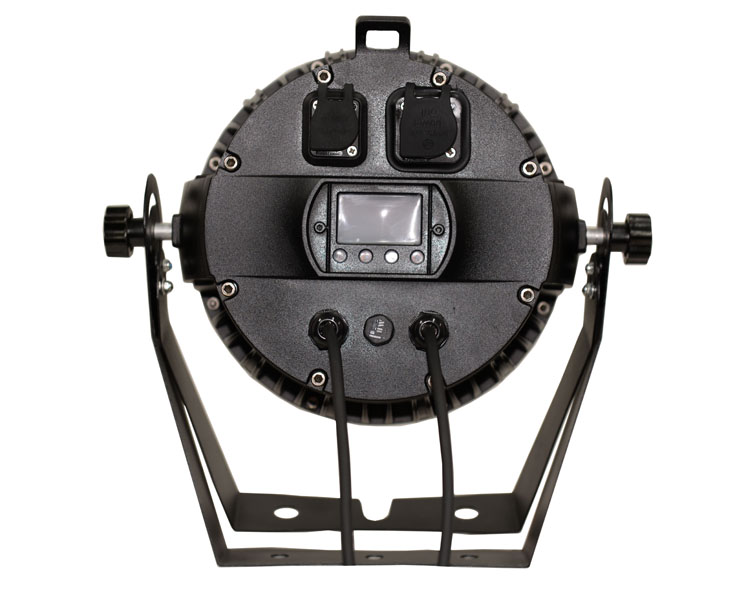

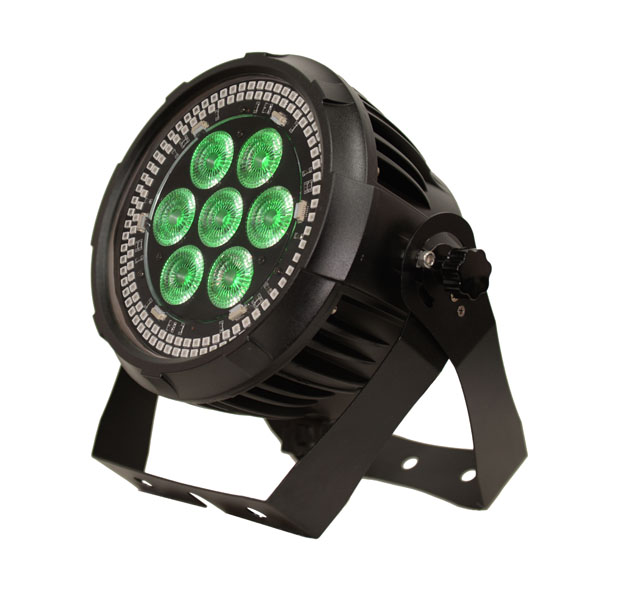

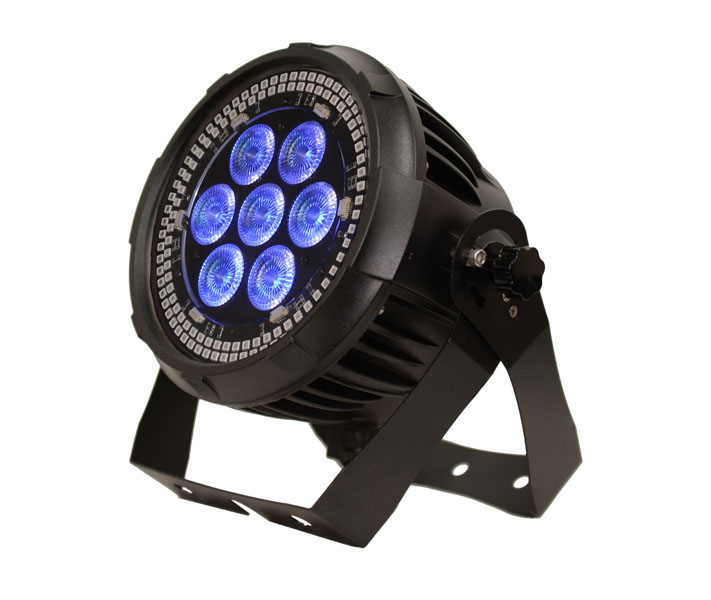

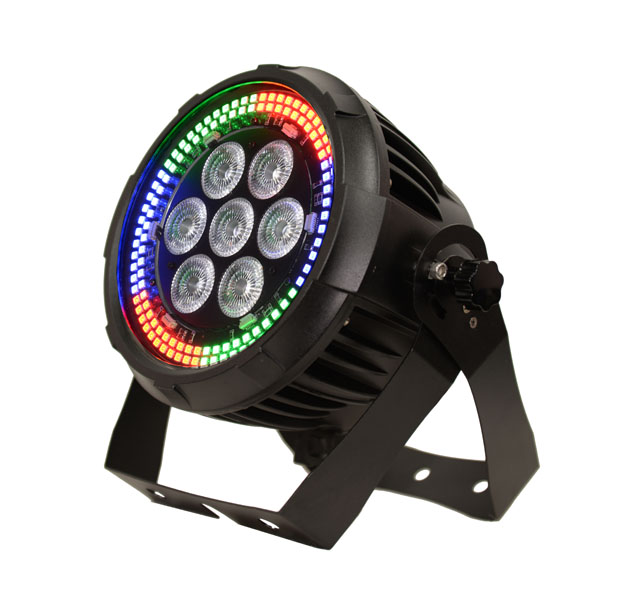

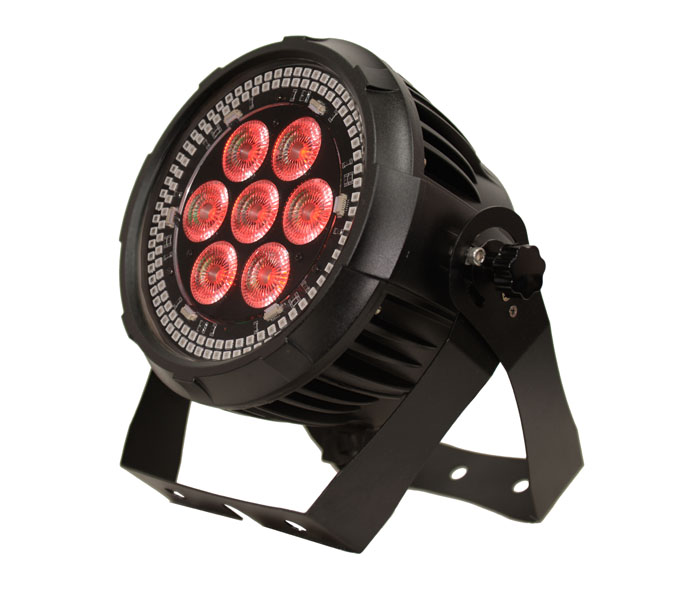

LED Outdoor Par
Intella System innovates with the new LED Par PS150, for indoor and outdoor use. Comes with high efficiency component optics, RGBWA, 126 pcs 1W SMD Tri-LED + 7 pcs 12W 5 in 1 LED and very bright output. PS150 LED life expectancy is over 50,000 hours.
A color mixing, strobe and wash effects available: 6 segments for strobe version; strobe and wash can be controlled separately, with 16bit dimmer.
PS150 comes with DMX master/slave-function and operating mode. Brings the DMX channel options of 1/8/9/23/32. A very suitable beam angle of 120° for SMD LED and 35° for 5 in 1 LED, as well as flash duration from 0 to 650ms in DMX mode (except 1 channel mode) and 0-30 flash per second are some features that make PS150 such a great fixture.
The PS150 is a lightweight, robust, compact and ultra-high performance LED par, with an exceptionally power consumption of 150W.
Video: https://www.youtube.com/watch?v=HDRCY05vt0Y |
|
|
请稍候...
-
PS 150
TECHNICAL INFORMATION
Optics
-
Light source: 126pcs 1W SMD Tri-LED + 7pcs 12W 5in1 LED (RGBWA)
-
LEDs expected lifetime: > 50,000 hours
-
Output: 5,000 lm
-
Beam angle: 120° for SMD LED, and 35° for 5 in 1 LED
Optical and effects
-
IP65
-
Dimmer:16 Bit dimmer
-
Waterproof rating: IP22 and IP65
-
LED Scan Rate: 7,000Hz
Electrical
-
Supply input: AC100-240V 50/60Hz
-
Power consumption: 150W
Mechanical
-
Height: 250 mm (9.84”)
-
Width: 140 mm (5.51”)
-
Depth: 182 mm (7.17”)
Thermal
-
Cooling: Diecasting heatsink
-
Over Heat Protect With temperature sensor to extend the light source life
Control and >Programming
-
DMX mode:
-
DMX mode: 1/8/9/23/32 DMX Channels
-
Operating Mode: DMX Mode/Master-Slave mode
-
Effects Both strobe and wash mode are available
-
6 segments for strobe version, strobe and wash can be controlled separately, with 16 bit dimmer.
-
Flash duration from 0 to 650ms in DMX mode (except 1 channel mode)
-
0-30 flash per second)
|
|
|
|
|
|
|
