Storm 2000 white IP65
TECHNICAL INFORMATION
Optics
Light source: 1,260 x White LEDs
Luminous: 200,000 LM
LEDs expected lifetime: 50,000 hours*
Lens options: 120 degrees fixed
Features
Pan/Tilt: 0° / 120°

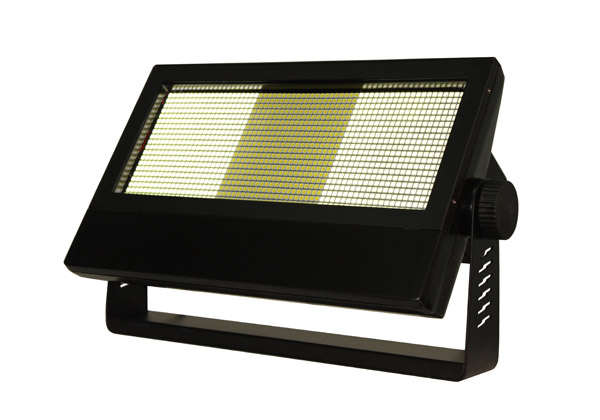

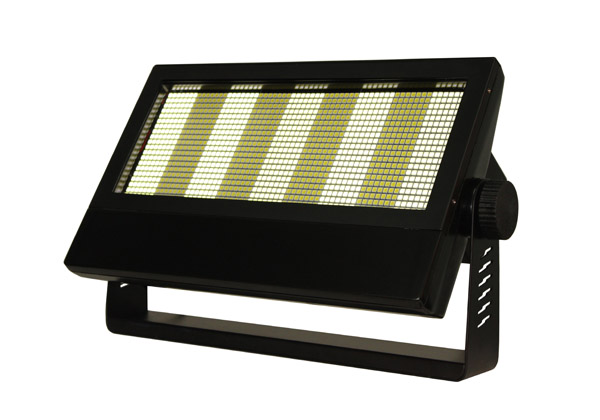

LED Panel: 9 individual controllable segments
Electrical
AC Power: 200 – 240V 50/60 Hz
Maximum power consumption: 1,600 W
Typical current consumption: 5A
Peak current consumption: 5A
Programming and Control
Protocol: USITT DMX512
Setting and addressing: Standalone, Master/Slave, Auto Mode
DMX channels: 1, 3, 4, 6, 7, 9, 16
Physical
Dimensions (L x H x W): 490 x 285 x 120 mm (19.3 x 11.22 x 4.72 in)
Material: Die-casting Aluminum
Lens: Tempered glass front
Installation
Orientation: Any
Rigging possibilities: Floor stand (included) or hanging (Omega Clamp included)
Safety features: Bottom mount for Safety wire
Material: Die-casting Aluminum
Lens: Tempered glass front
Thermal
Temperature range, Operating: -10° to +40°C (14° - 104°F)
Humidity (max.): 90%
Safety features: Passive
Connections
DMX data in/out: IP43 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out
Power cable 1.5m with bare ends
Conforms to
Certifications CE and RoHS
Included Items
1 x Base Plate /2 x Mounting Brackets
A sweet Safety Cable & eyebolt
A power Cord
User Manual
Features and Accessories
Intense built-in strobe programs + random strobe
9-segment pixel modes can safely be used as wash (max 40% brightness)
Built-in over heat protection temperature sensor to extend the lamp life
Variable electronic strobe & 16-bit dimmer
User adjustable flash rate of 0-30 flashes per second
Flash duration can be set from 0-650ms in DMX mode
7000Hz LED scan rate
4-button easy to use LCD control panel menu
Aluminum mounting bracket with locking knobs + base plate
3-pin & 5-pin DMX Input/Output
PowerCon? compatible AC power In/Out connectors
*(Figure provided by manufacture and obtained under manufacture`s test conditions)
|
