Name:Super Storm500 RGBW

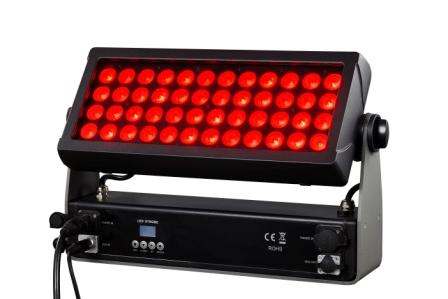

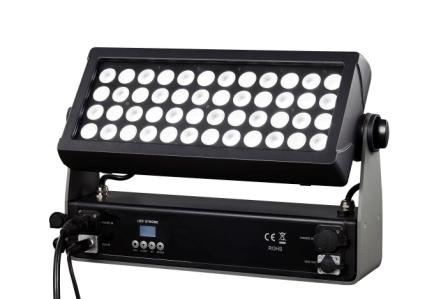

Super Storm500 RGBW
LED Wash

INTELLA designed the amazing Super Storm 500, that contains 48 x RGBW 4in1 10W LEDs, a max power consumption of 500W and an astonishing light output of 15,000 luminous. The compact design ensures easy and quick setup.
Super Storm 500, an IP65 rated fixture - suitable for outdoor use, come in a very small and robust chassis weighing only 9 kilos/19 lbs with a compact dimension of 478 x 313 x 144mm. The indoor model has IP43 class.
The 48 lenses in the Super Storm 500 colors contain a stunning color calibrate function; what generates a wide-ranging color and effect combinations, while the LED source life expectancy is 50,000 hours. The Color LED Wash has lens options of 35° and DMX channels 1, 2, 3, 4, 6, 8F, 9F, 10F, 10D, 14D and 15F; selectable for numerous applications.
Super Storm 500 is built-in over heat protection temperature sensor to extend the lamp life, standard 3 or 5-pin XLR for DMX in/out, color calibrate function and 4-button easy to use LCD control panel menu.
请稍候...
  • Detail
  • Optics
                  Light source: 1500W IP65 572pcs 1W RGB LEDs & 144pcs 8W white LEDs
                  Luminous: ?100,000 LM
                  LEDs expected lifetime: 20,000 hours*
                  Lens options: 120 degrees fixed
    Features
                 Pan/Tilt: 0° / 120°
                 LED Panel: 12-segment pixel modes can safely be used as wash (300W brightness);
    Electrical
                 AC Power: 200 – 240V 50/60 Hz
                 Maximum power consumption: 1500 W
                 Typical current consumption: 5A
                 Peak current consumption: 5A
    Programming and Control
                 Protocol: USITT DMX512 A
                 Setting and addressing: Standalone, Master/Slave, Auto Mode
                 DMX channels: ?1/10/14/26/73/58/4/12/48
    Physical
                 Dimensions (L x H x W): 490 x 313 x 123mm, Weight 9.5 Kg;
                 Material: Die-casting Aluminum
                 Lens: Tempered glass front
    Installation
                 Orientation: any
                 Rigging possibilities: Floor stand (included) or hanging (Omega Clamp included)
                 Safety features: Bottom mount for Safety wire
                 Material: Die-casting Aluminum
                 Lens: Tempered glass front
    Thermal
                 Temperature range, Operating: -10° to +40°C (14° - 104°F)
                 Humidity (max.): 90%
                 Safety features: Passive
    Conforms to
                 Certifications CE and RoHS
    Included Items
                 A sweet Safety Cable & eyebolt
                 A power Cord
                 User Manual
    Fixtures and Accessories
                 Super bright output via 572pcs 1W RGB LEDs & 144pcs 8W white LEDs
              Innovative technology, own & unique design* patent of Intella System Ltd;
              Standalone, master/slave, auto mode operating mode;
                 Intense built-in strobe programs + random strobe
                 12-segment pixel modes can safely be used as wash (max 300W brightness)
                 Built-in over heat protection temperature sensor to extend the lamp life
                 Variable electronic strobe & 16-bit dimmer
                 User adjustable flash rate of 0-30 flashes per second
                 Flash duration can be set from 0-650ms in DMX mode
                 8000Hz LED scan rate
                 4-button easy to use LCD control panel menu
                 3-pin & 5-pin DMX Input/Output
                 PowerCon compatible AC power In/Out connectors

    *(Figure provided by manufacture and obtained under manufacture`s test conditions)
