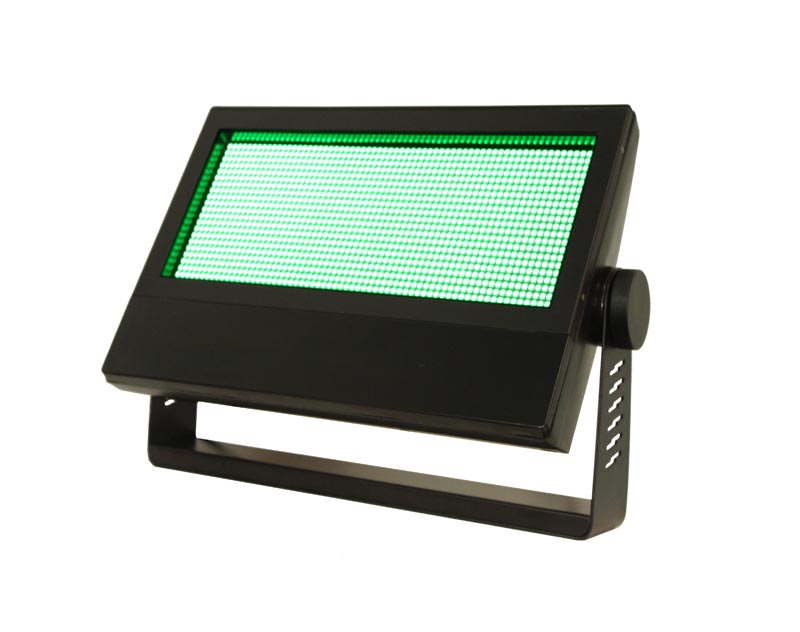

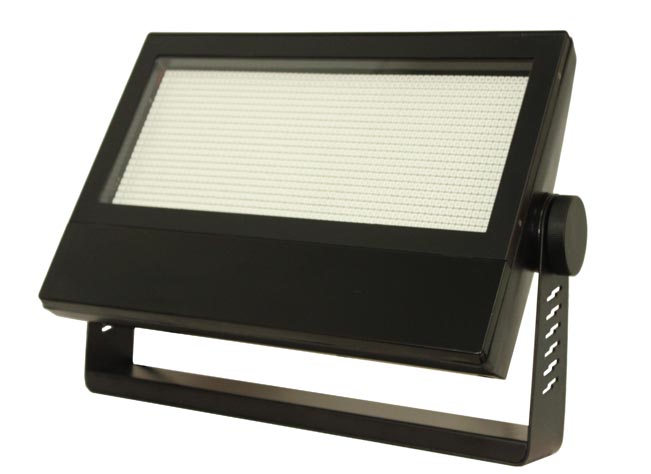

Storm 400 RGB IP65

TECHNICAL INFORMATION

Optics

             Light source: 1,452 x RGB LEDs

             Luminous: 13,000 LM

             LEDs expected lifetime: 50,000 hours*

             Lens options: 120 degrees fixed

Photometric

             Color Temperature: 5,500 k

             Features

             Pan/Tilt: 0° / 120°

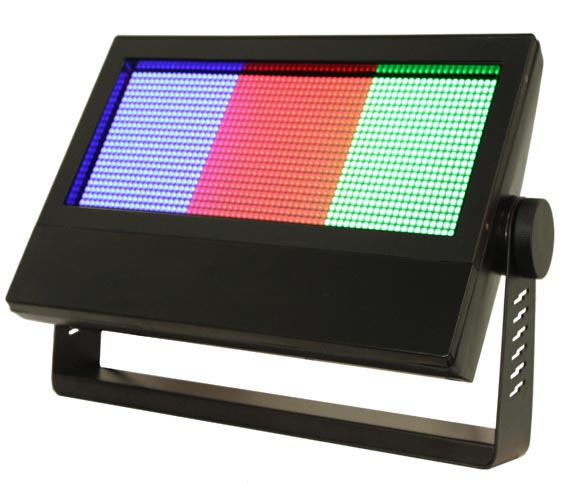

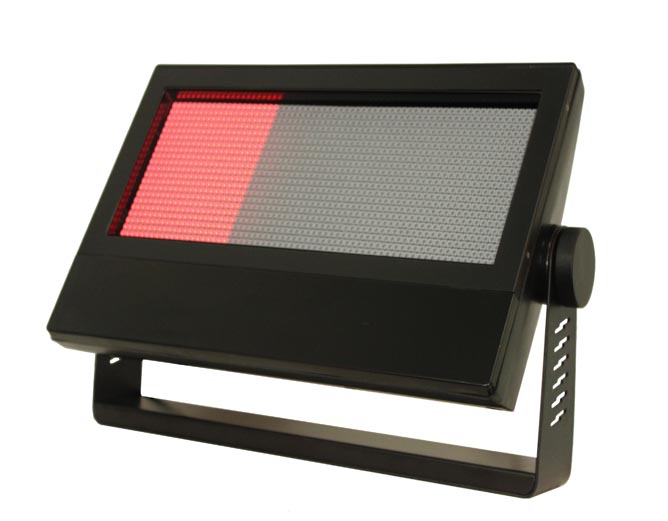

             LED Panel: 3 individual controllable segments

Electrical

             AC Power: 100 – 240V 50/60 Hz

             Maximum power consumption: 400 W

             Typical current consumption: 4A

             Peak current consumption: 5A

Programming and Control

             Protocol: USITT DMX512

             Setting and addressing: Standalone, Master/Slave, Auto Mode

             DMX channels: 1, 3, 4, 6, 7, 9, 16

Physical

             Dimensions (L x H x W): 490 x 285 x 85mm (19.3 x 11.22 x 3.35 in)

             Weight: 7.85 Kg (17.30 lbs)

             Material: Die-casting Aluminum

             Lens: Tempered glass front

Installation

             Orientation: Any

             Rigging possibilities: Floor stand (included) or hanging (Omega Clamp included)

             Safety features: Bottom mount for Safety wire

Thermal

             Temperature range, Operating: -10° to +40°C (14° - 104°F)

             Temperature range, Start-up: -10° to +40°C (14° - 104°F)

             Humidity (max.): 98%

             Safety features: Passive

Connections

             DMX data in/out (indoor version): IP43 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out

             DMX data in/out (outdoor version): IP65 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out

             Power cable 1.5m with bare ends

Conforms to

             Certifications CE and RoHS

Included Items

             1 x Base Plate /2 x Mounting Brackets

             A sweet Safety Cable & eyebolt

             A power Cord

             User Manual

Features and Accessories

             Intense built-in strobe programs + random strobe

             3/9-segment pixel modes can safely be used as wash (max 40% brightness)

             Built-in over heat protection temperature sensor to extend the lamp life

             Variable electronic strobe & 16-bit dimmer

             User adjustable flash rate of 0-30 flashes per second

             Flash duration can be set from 0-650ms in DMX mode

             7000Hz LED scan rate

             4-button easy to use LCD control panel menu

             Aluminum mounting bracket with locking knobs + base plate

             3-pin & 5-pin DMX Input/Output

             PowerCon™ compatible AC power In/Out connectors

*(Figure provided by manufacture and obtained under manufacture`s test conditions)
