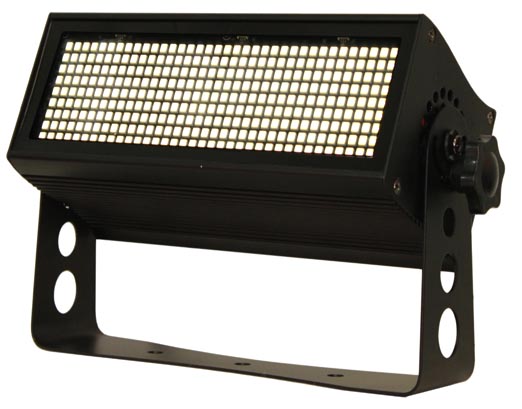

Mini Storm 400 white

TECHNICAL INFORMATION

Optics


           Light source:

           Warm white: 324 x warm white LEDs (3200k)
           Cool white: 324 x cool white LEDs (5600k)
           Warm-cool white: 162 x warm white + 162 x cool white LEDs (3200k/ 4000k/5600k)



           Luminous: 35,000 LM

           LEDs expected lifetime: 50,000 hours*

           Lens options: 120 degrees fixed

Features

           Pan/Tilt: 0° / 120°

           LED Panel: 9 individual controllable segments

Electrical

           AC Power: 100 – 240V 50/60 Hz

           Maximum power consumption: 350 W

           Typical current consumption: 1.6A at 220V

Programming and Control

           Protocol: USITT DMX512

           Setting and addressing: DMX Mode / Master-slave mode / Pixel mode (50% of the max strobe brightness,

optional use as wash)

           DMX channels: 1, 3, 4, 5, 6, 7, 16

Physical

           Dimensions (L x H x W): 360 x 180 x 110 mm (14.17 x 7.09 x 4.33 in)

           Weight: 2.55 Kg (6.17 lbs.)

           Material: Die-casting Aluminum

           Lens: Tempered glass front

Installation

          Orientation: Any

          Rigging possibilities: floor stand or hanging

          Safety features: Bottom mount for Safety wire

Thermal

          Temperature range, Operating: -10° to +40°C (14° - 104°F)

          Humidity (max.): 90%

          Safety features: active, fan cooling

Connections

          DMX data in/out: XLR 5-pin/ 3-pin in and out

          Power connector: In and out

          Power cable 1.5m

Conforms to

          Certifications CE and RoHS

Included Items

          A Safety Cable & Eyebolt

          A power Cord &DMX signal cable

          User Manual

Features and Accessories

          Intense built-in strobe programs + random strobe

          9-segment pixel modes can safely be used as wash (max 40% brightness)

          Built-in over heat protection temperature sensor to extend the lamp life

          Variable electronic strobe & 16-bit dimmer

          User adjustable flash rate of 0-30 flashes per second

          Flash duration can be set from 0-650ms in DMX mode

          7000Hz LED scan rate

          4-button easy to use LCD control panel menu

          Aluminum mounting bracket with locking knobs + base plate

          3-pin & 5-pin DMX Input/Output

          PowerCon™ compatible AC power In/Out connectors

Effects

          Both Strobe and wash mode are available

          9 segments LED, can be controlled independently, with 16bit dimmer

          Flash duration from 0 to 650ms in DMX mode (except 1 channel mode)

          0-30 flashes per second

          Ramp up effect: light gradually increases in intensity, then blacks out

          Ramp down effect: light flashes to full intensity, then gradually fades

          Ramp up-down effect: light gradually increases and decreases

          Radom flash effect: light flashes randomly with variable rate and intensity.

          Multiple units flash independently from each other

          Blinder effect: the light remains on (lamp power is electronically regulated to prevent the lamp from overheating)

          Lightning effect: the flashes simulate lightning, duration is not adjustable

          Spikes: the lamp remains dimly illuminated between flashes. Set flash intensity, duration and rate as normal

*(Figure provided by manufacture and obtained under manufacture`s test conditions)
