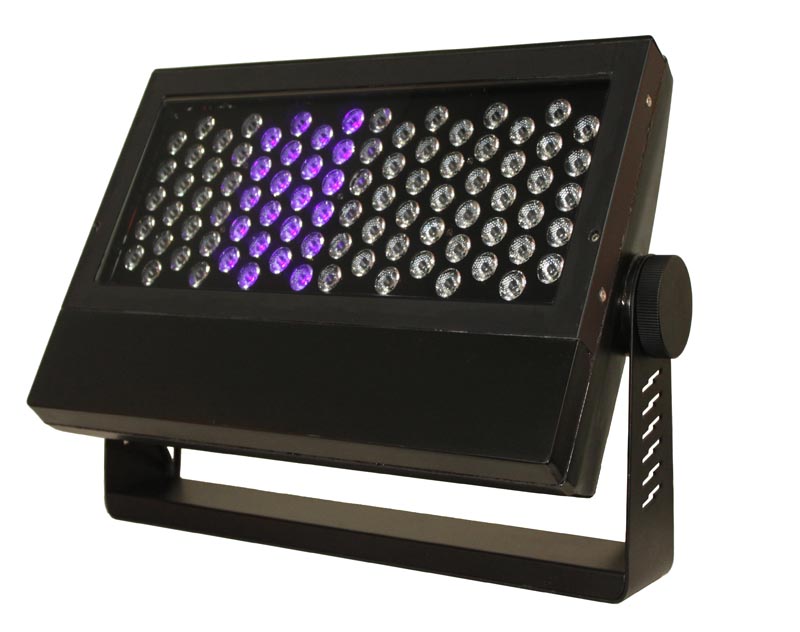

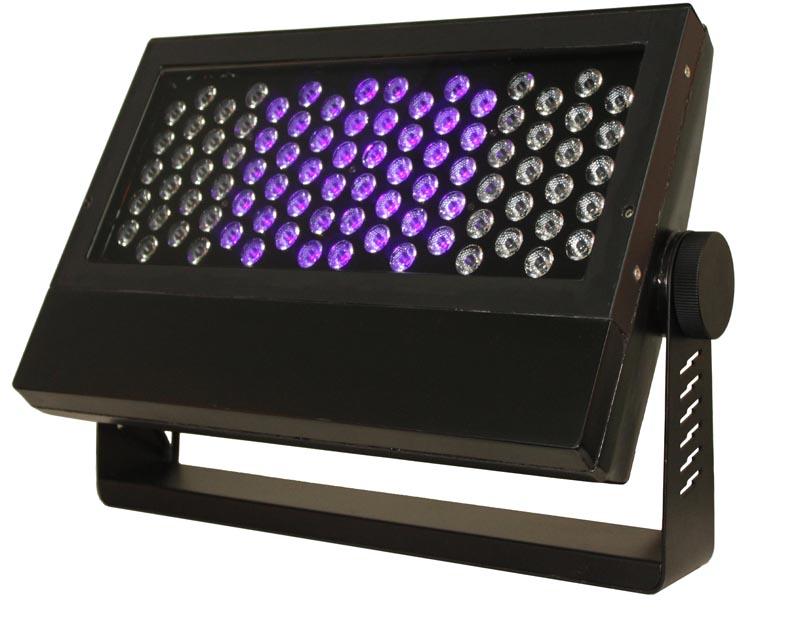

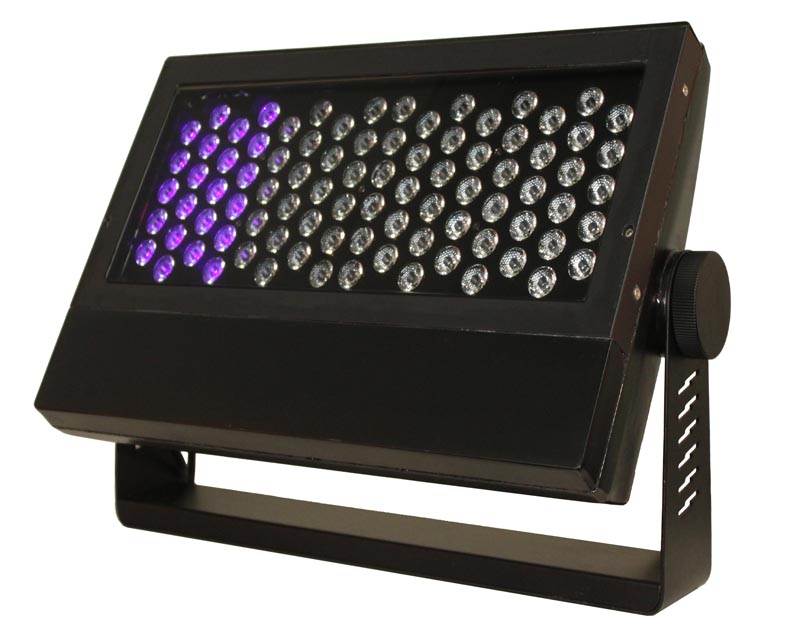

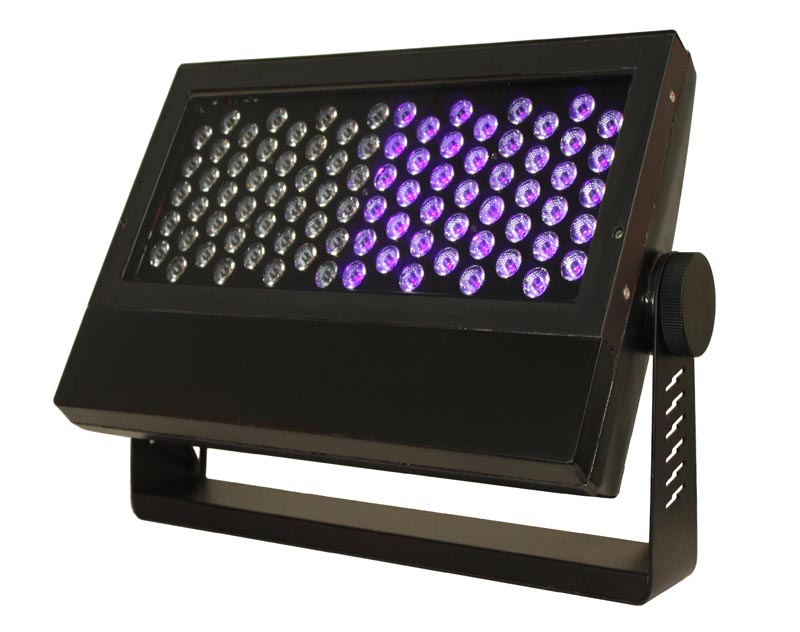

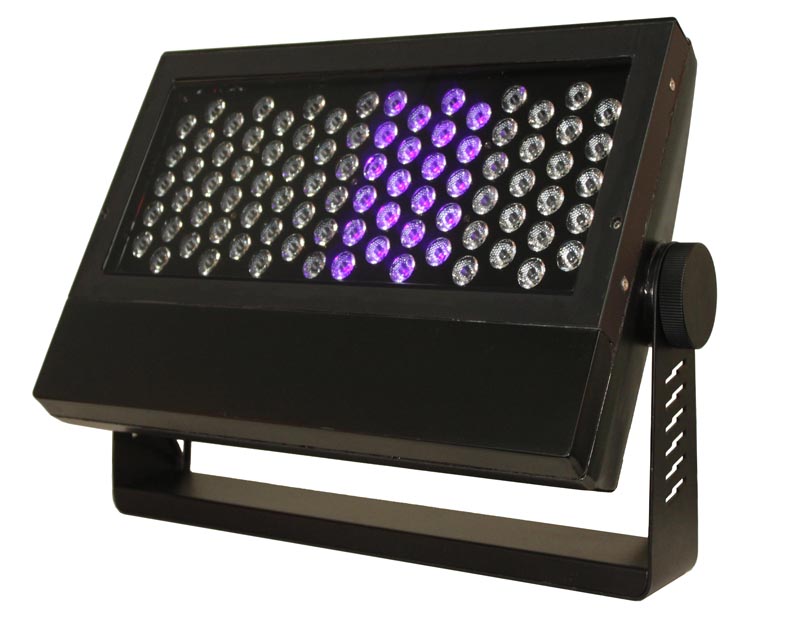

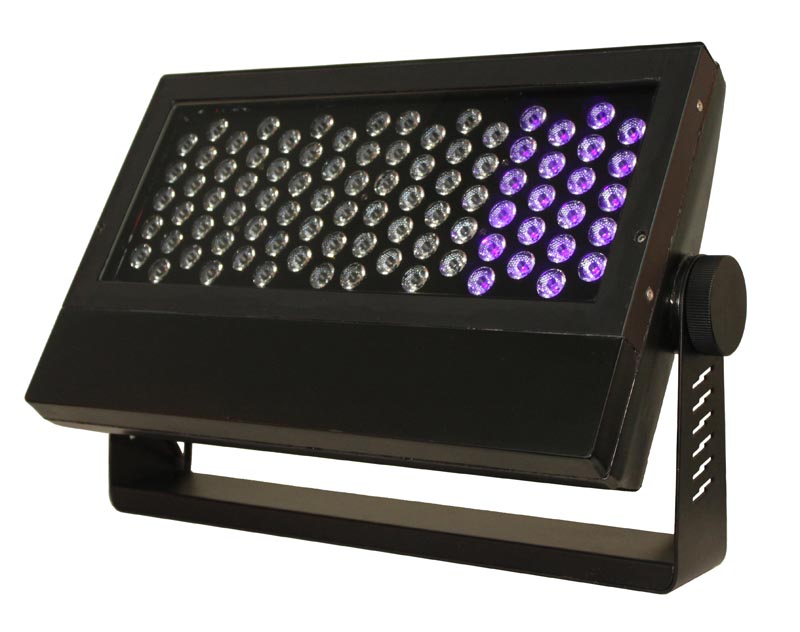

Storm 300 UV IP65

TECHNICAL INFORMATION

Optics

• Light source: 88 x High power 3W LEDs
• LEDs expected lifetime: 50,000 hours*
• Interchangeable lens options: 25°
• Wave length: 400 nm

Photometric

• Light output: 2,000 lumen (25° lens)
• Efficacy: 10 lm/W

Features

• Pan/Tilt: 0° / 120°

Electrical

• AC Power nominal: 100 – 240V 50/60 Hz
• AC Power max rating 100 – 240V 50/60 Hz
• Maximum power consumption: 250 W (all LEDs on)
• Typical current consumption: 200 W (all LEDs on)
• Power factor: 0.98 PF (230V)

Programming and Control

• Protocol: USITT DMX512 A
• Setting and addressing: Standalone, Master/Slave, Auto Mode
• DMX channels: 4, 6 & 9 selectable for numerous applications

Physical

• Dimensions (L x H x W): 490 x 285 x 105mm (19.3 x 11.22 x 4.13 in)
• Weight: 9.05 Kg (19.95 lbs)
• Material: Die-casting Aluminum
• Lens: PE and tempered glass
• IP class (waterproof): IP44 / IP65

Installation

• Orientation: Any
• Rigging possibilities: Floor stand (included) or hanging (Omega Clamp included)
• Safety features: Bottom mount for Safety wire

Thermal

• Temperature range, Operating: -10° to +40°C (14° - 104°F)
• Humidity (max.): 98%
• Safety features: Active, forced air, temperature-regulated, low noise

Connections

• DMX data in/out (indoor version): IP65 Neutrik HD locking XLR 3-pin connectors, for DMX in and out
• Screened cables in compliance with EIA RS-485 specifications: 2 conductors plus screen, 120 Ohm impedance, max. transmission 250kBaud.
• Power cable 1m with bare ends

Conforms to

• Certifications CE and RoHS2
• Waterproof grade: IP44 / IP65

Included Items

• 1 x Base Plate /2 x Mounting Brackets
• A sweet Safety Cable & eyebolt
• A power Cord
• User Manual

Features and Accessories

• Built-in over heat protection temperature sensor to extend the lamp life
• 16-bit dimmer
• DMX-controlled operation or stand alone operation with Master/Slave-function
• Color calibrate function
• 4-button easy to use LCD control panel menu
• Aluminum mounting bracket with locking knobs + base plate
• 3-pin DMX Input/Output
• PowerCon™ compatible AC power In/Out connectors
• DMX-512 connection with DMX terminator, XLR plug with 120 OHM resistor connected between pins 2 and 3 plugged into the output XLR socket of the last fixture in the chain (when DMX cable has to run a long distance in an electrically noisy environment)

*(Figure provided by manufacture and obtained under manufacture`s test conditions)
