White LED Wash
INTELLA has introduced the innovative technology of Storm 300 white and Storm 300 white waterproof, with IP65 suitable for outdoor use. Come in a very small and robust chassis weighing only 8 kilos/17 lbs.
The low profile Storm 300 is ideal for theatre, architectural, studio, fashion, TV and other applications where maximum output and adjustable color temperature is required.
The 88 lenses in Storm 300 with 25° are divided into 4-individually controllable segments with white color temperature – 6,500k or 3,200k.
Storm 300 contains 24 x High power 12W white LEDs , and has an astonishing light output of 10,000 lumen. The compact design ensures easy and quick setup.
The power consumption is 200W and the LED source life expectancy is 50,000 hours. |
|
|
请稍候...
-

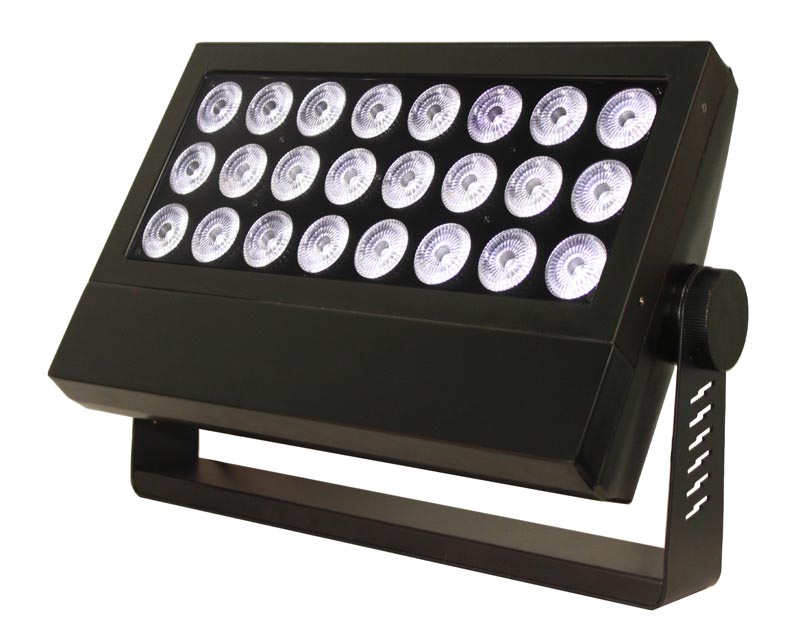

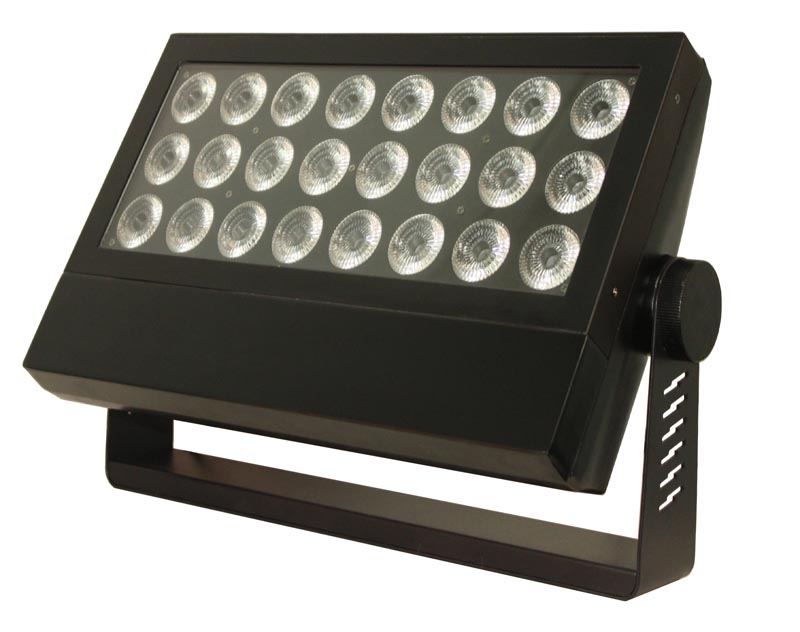

Storm 300 white IP65
TECHNICAL INFORMATION
Optics
-
Light source: 24 x High power 12W white LEDs
-
LEDs expected lifetime: 50,000 hours*
-
Interchangeable lens options: 25°
Photometric
-
Light output: 10,000 lumen (25° lens)
-
Light output: 15,000 lux at 2 meters
-
Efficacy: 50 lm/W
Electrical
-
AC Power nominal: 100 – 240V 50/60 Hz
-
AC Power max rating 100 – 240V 50/60 Hz
-
Maximum power consumption: 250 W (all LEDs on)
-
Typical current consumption:200 W (all LEDs on)
-
Power factor: 0.98 PF (230V)
Programming and Control
-
Protocol: USITT DMX512 A
-
Setting and addressing: Standalone, Master/Slave, Auto Mode
-
DMX channels: 4, 6 & 9 selectable for numerous applications
Physical
-
Dimensions (L x H x W): 490 x 285 x 105mm (19.3 x 11.22 x 4.13 in)
-
Weight: 9.05 Kg (19.95 lbs)
-
Material: Die-casting Aluminum
-
Lens: PE and tempered glass
-
IP class (waterproof): IP44 / IP65
Installation
-
Orientation: Any
-
Rigging possibilities: Floor stand (included) or hanging (Omega Clamp included)
-
Safety features: Bottom mount for Safety wire
Thermal
-
Temperature range, Operating: -10° to +40°C (14° - 104°F)
-
Humidity (max.): 98%
-
Safety features: Active, forced air, temperature-regulated, low noise
Connections
-
DMX data in/out (indoor version): IP65 Neutrik HD locking XLR 3-pin connectors, for DMX in and out
-
Screened cables in compliance with EIA RS-485 specifications: 2 conductors plus screen, 120 Ohm impedance, max. transmission 250kBaud.
-
Power cable 1m with bare ends
Conforms to
-
Certifications CE and RoHS2
-
Waterproof grade: IP44 / IP65
Included Items
-
1 x Base Plate /2 x Mounting Brackets
-
A sweet Safety Cable & eyebolt
-
A power Cord
-
User Manual
Features and Accessories
-
Built-in over heat protection temperature sensor to extend the lamp life
-
16-bit dimmer
-
DMX-controlled operation or stand alone operation with Master/Slave-function
-
Color calibrate function
-
4-button easy to use LCD control panel menu
-
Aluminum mounting bracket with locking knobs + base plate
-
3-pin DMX Input/Output
-
PowerCon™ compatible AC power In/Out connectors
-
DMX-512 connection with DMX terminator, XLR plug with 120 OHM resistor connected between pins 2 and 3 plugged into the output XLR socket of the last fixture in the chain (when DMX cable has to run a long distance in an electrically noisy environment)
*(Figure provided by manufacture and obtained under manufacture`s test conditions)
|
|
|
|
|
|
|
